The test stand is designed for hose testing in the automotive industry. It has a vibrator of around 10 kN with a vibration path of 50 mm and can be combined with a 600 liter to 1500 liter climate chamber or automatically operated. The test stand is also used to test electronic components with small sample quality (<20 kg). During the vibration test, the climatic chamber is capable of temperature cycling in the temperature range of -45 ° C to over 180 ° C.

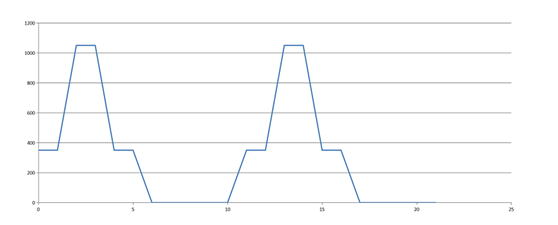

To test the hose, a defined flow of media is provided for the test sample. The medium can be tempered and subjected to impulse pressure. The test meets various test standards. For example, SAE J 2044 quick connect, 7.5 life cycle test or GM9080P, 5.4 pressure cycle.
